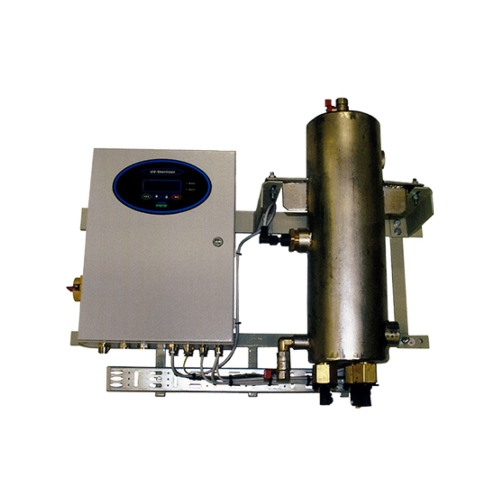

Ultra Violet Steriliser

Render micro-organisms inactive effectively with U.V sterilisers.

Available in a wide variety of capacities. Controls and alarm systems are integrated to facilitate crew’s maintenance and trouble shooting.

Enquiry
Description
Features
Capacities

Bacteria free clean fresh water
Suitable for a wide array of application. Maximum flow at different water qualities (m³/h). Normally the Max/Min capacity of a UV-unit is chosen between T50=90% down to T50=60%.

  • Lamp monitoring system
  • LCD display
  • UV-sensor standard
  • Low power consumption
  • Compact design in stainless steel 316L

T10=100% T10=98% T10=96% T10=93% T10=90% T10=87% T10=83%

Size T50=100% T50=80% T50=80% T50=70% T50=60% T50=50% T50=40%

UV1 1.41 1.28 1.15 1.01 0.88 0.74 0.60

UV2 1.98 1.79 1.61 1.42 1.24 1.04 0.85

UV3 4.59 4.05 3.51 3.01 2.53 2.06 1.62

UV4 6.98 6.13 5.30 4.54 3.82 3.13 2.49

UV5 12.49 10.52 8.73 7.17 5.79 4.55 3.45

UV31 15.88 14.00 12.14 10.41 8.75 7.13 5.60

UV41 24.09 21.13 18.28 15.67 13.21 10.86 8.66

UV51 43.20 36.39 30.19 24.82 20.03 15.73 11.94
