Oily Water Separator

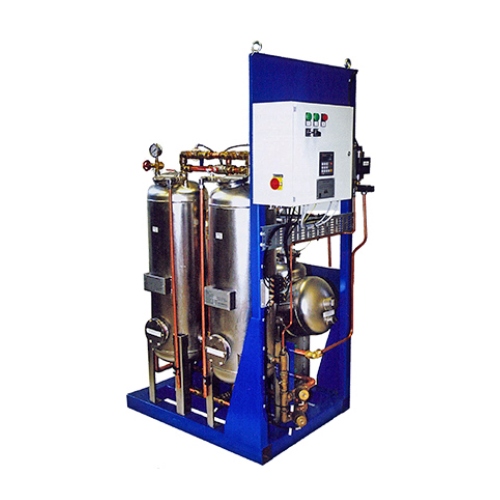

The 3SEP OWS oily bilge water separator comes in a compact dual stage system available in a range of capacities. The system utilises differential specific gravity, coalescence plates and filtration to separate and remove free and emulsified oil.
EnquiryDescription
Features
Specifications
Configuration versatility
The Marine Compact AMB heavy fuel oil supply unit is the equipment of choice for filtration, heating and pressurising of heavy fuel oil prior to injection into diesel engines.
Available in ten different size classes according to the total engine power it serves and configurable according to your demands.
No more than 15 ppm
The system is designed for a continuous flow with automatic operation and does not require any chemicals.
The first stage removes the free oil by gravity with the help of coalescence plates. An adjustable oil sensor controls the valve for automatic oil release to the sludge tank or any other dedicated tank. The adjustable oil sensor makes it possible to minimise the amount of treatable water released to the sludge tank.
In the second stage, emulsified oil is removed in the two filter tanks and the ppm value is monitored by a 15-ppm bilge alarm, before the treated water is discharged overboard. The collected free oil on top of each filter tank is released automatically to the sludge tank at a pre-set interval.
- Type approved in accordance with IMO MEPC 107(49)
- Treated water below 15ppm
- Separates free and emulsified oil
- Continuous flow with automatic operation
- Does not require any chemicals
- Plug n' play, easy installation
- Skid design, small footprint
- High quality material and parts
- Tanks made of stainless steel, AISI 316L
- Can easily be connected to JOWA EBU unit for less than 5ppm applications
- Capacity range 0.5-10 m3/h
- Approvals; DNV, CCS, USCG & RMRS
